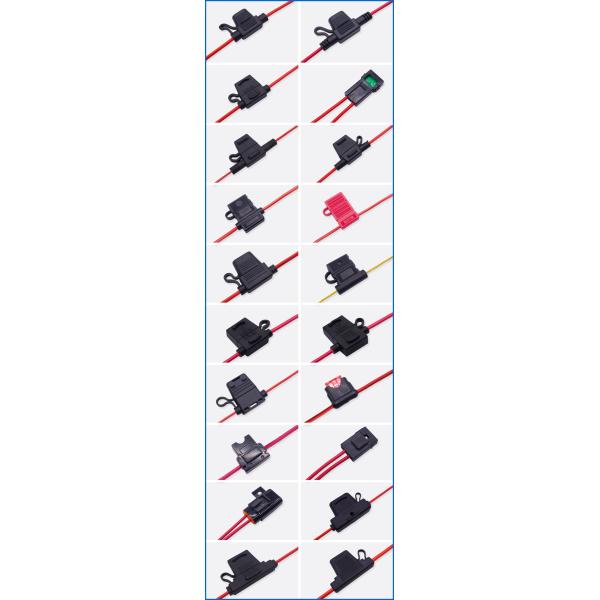

Waterproof Inline Fuse Holder UL1015 16AWG 150mm For Mini Regular Standard Maxi Blade Fuse
About Ampfort Of The Waterproof Inline Fuse Holder
The series of fuses for automobiles and motorcycles are divided into medium-sized blade fuses and mini-type blade fuses. The specifications are 1A2A 3A 4A 5A 7.5A 15A 20A 25A 30A 35A 40A 50A and so on. Large blade fuse, specifications are 20A30A 40A 50A 60A 70A 80A 100A. Glass tube car fuse, specifications are 1A2A 5A 10A 15A 20A 25A 30A and so on. Connected fuses include internal (female) plug-in fuses (with long and short slots), external (male) plug-in fuses, flat-plug fuses, backpack fuses, mini backpack fuses, specifications are 20A 30A 40A 50A 60A 70A 80A 100A 120A, cylindrical (Eastern European style) fuse specifications are 5A, 8A, 16A, 20A, 25A (long and short). Small fork bolt fuse, large fork bolt fuse specifications are 80A100A 130A 150A 180A 200A 250A 300A, and various fuse holders, packaged with blister card, color box, transparent plastic box, etc. The products are exported to Europe and the United States Around the world, the factory now produces 100 million pieces per year.
Application range Of The Waterproof Inline Fuse Holder
The fuse box holder with lead wire type automobile blade is often used in automobile wiring harness.
In the process of selecting the fuse box, the current size of the fuse used and the size requirements of the fuse should be considered. The larger the fuse current is, the larger wire must be selected for the wire matching the fuse box, otherwise it will cause the fuse box and The wire becomes hot, causing a fire.
Description Of The Waterproof Inline Fuse Holder
Inline fuse holder made of PVC/TPE and terminal ,as well as UL standard cable in different size, cable can be flexiable based on max current flow fuse / fuse holder, all parameters and size can be customzied and we can open new mould to produce new product as customer requirements.
Specification Of The Waterproof Inline Fuse Holder
| Name | Inline Fuse Holder |
| Fuse | MICRO2/MINI/SMALL/STANDARD/MAXI |
| Cable | UL1015 6AWG~18AWG |
| Length | Customized |
| Stocks | 150mm per side |
| Color | Red or black |
| MOQ | 1000PCS |
| Lead time | 7-10 days |
Patent
Automobile waterproof fuse holder An automobile fuse holder with waterproof performance, including a seat body, a card slot, a fuse placement slot and a toggle block, the seat body includes at least an upper shell and a lower shell, and the seat body is a square structure A first inclined surface is fixedly provided on the outer wall of the connection between the lower end of the upper casing and the lower casing, and a second inclined surface is provided at the position of the upper end of the lower casing corresponding to the position of the first inclined surface. The surface and the second inclined surface are provided with an angle, the inner side of the lower housing is centrally provided with a fuse placement slot, the second inclined surface is symmetrically provided with a wire hole, the wire hole is connected with the fuse placement slot, and the connection is provided There are guide pieces, and the upper surface of the lower shell has two sets of card slots beside the fuse placement slot. This waterproof car fuse holder has reasonable structure, compact splicing, good waterproof performance, and high practicability. Features, can be widely used.
Know the (IP67) waterproof rating of the leaded fuse holder
IP xx dustproof and waterproof rating
0: no protection
1: Prevent the intrusion of large solids
2: Prevent the intrusion of medium-sized solids
3: Prevent small solids from entering and intruding
4: Prevent the entry of solid objects larger than 1mm
5: Prevent the accumulation of harmful dust
6: completely prevent dust from entering
Dustproof level (the first X indicates) Waterproof level (the second X indicates)
0: no protection
1: Water droplets into the shell have no effect
2: When the shell is tilted to 15 degrees, the water droplets into the shell have no effect
3: Water or rain has no effect on the lead fuse holder shell from the 60 degree corner
4: The liquid splashed into the shell from any direction has no harmful effect
5: Rinse with water without any harm
6: Can be used in the cabin environment
7: Resistance to water immersion in a short time (1m)
8: Immersion in water for a long time under a certain pressure Example: Some electronic switches are marked as IP65, which means that the product can completely prevent dust from entering and can be washed with water without any harm.
